产品展示>>【OMEGA热电偶焊接机】

【OMEGA热电偶焊接机】


产品说明:

产地:USA
品牌:OMEGA
型号:TL-WELD

Designed for Production of Commercial Grade Thermocouple Junctions
No Special Skills Needed to Operate
Weld Wires up to 1.1mm(0.043in.) Diameter
Standard Accessories
  • Wire Holding Pliers and Lead
  • Safety Glasses
  • Magnifying Eyeglass
  • Carbon Electrodes
  • Spare 2A Fuse
  • Argon Hose
  • Power Cord
  • Footswitch for Greater Ease of Use

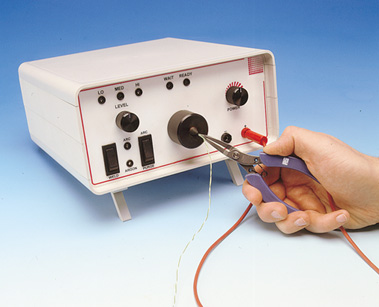

  • The TL-WELD is designed for sensor manufacturers for the production of commercial grade thermocouple junctions, and for users of large numbers of exposed junction thermocouples such as test and development laboratories where multipoint temperature sensing of test pieces is required. No special skills are needed and most people will be capable of producing quality work with minimal practice. The instrument can be operated via the front panel or by using the footswitch provided. In addition to thermocouple work, the TL-WELD welder is used in many other applications involving the joining of wires to each other and to metal surfaces. This model is suitable for welding wires up to 1.1 mm (0.043) diameter and has an argon gas shield facility. A satisfactory thermocouple junction is produced without using argon, but where argon is available a momentary purge is automatically triggered immediately prior to the weld to give optimum weld integrity. See related links below for complete specifications.

    相关产品链接:C2000+热电偶焊接机     DCC热电偶焊接机   OMEGA热电偶线和插头
