Product Name:TCK1209 Thermal Profiler
Prouduct Details:

·Size:9 CH

Main Technical Specifications:
1、Thermocouple:   K-type thermocouple
2、Sampling interval:0.25sec---600sec Set with software
3、Record data:80000 point/channel, Can record 20 sets profile
4、Resolution: 0.1℃
5、Temperature measuring range: 0—1000℃
6、Temperature measuring accuracy: ±1.0℃
7、Total power: ≤120mW
8、Operating voltage:3.6VDC, rechargeable battery
9、Dimensions:: 196(L)×82(W)×21(H)mm
10、Insulation box Dimensions:250(L)×100(W)×30(H)mm
11、Start  Mode : Manual, specified time or specified temperature
12、Record mode: Monitor/Record
13、Connection mode:USB/RF
14、Software version:Profilermanager 1.60

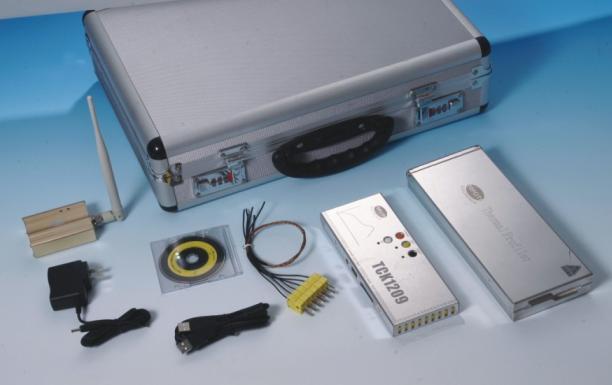

Standard Composition:
1. Thermal profiler    2. Insulation box
3. Temperature test line   4. Data download line
5. Charger     6. Hi-temp adhesive tape
7. Software CD     8. “+” screwdriver   9. Tweezers
10. Insulated gloves   11. Hi-temp tine wire
12. Scissors       13. Instrument box
14. User Manual   15. Acceptance Certificate
16. RF Transceiver (Choose Composition)
17. Wave Test System (Choose Composition)
Software Setup and data analysis:
Product Library Manager
Machine Library Manager
Solder Library Manager
Recipe Library Manager
Peak Temp,Times of overtop the Temp
Times of between Temp(Reflow)
Slope of between Temp(Reflow)
Slope of between Times(Wave)
Horizontal line and Vertical line setting
Ramp Slope、Ramp Peak Temp ,Wave Peak Temp
